Carbon Fiber Centering Rings

  • £350

Size

For those extreme projects you want the best materials that provide maximum strength and minimal weight.

BCR Carbon Fibre Centering Rings are machined from 3mm thick industrial carbon fibre plate.

Part# OD (in) OD (mm) Motor Mnt (mm) Forward (mm) Weight (gm)

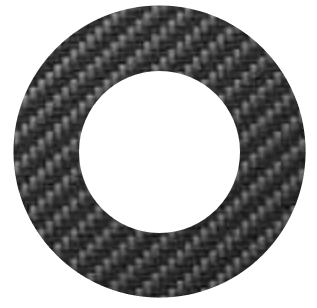

CCR-5429 2.1 54.6 29 7

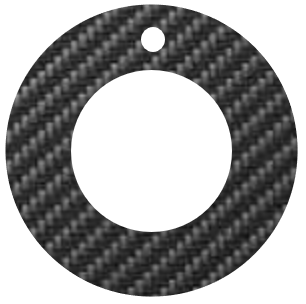

CCR-5429F 2.1 54.6 29 M4 7
CCR-5438 2.1 54.6 38 4
CCR-5438F 2.1 54.6 38 * 4

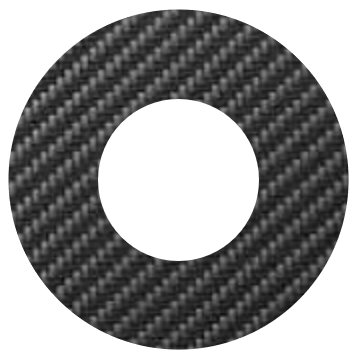

CCR-6529 2.56 64.85 29 12

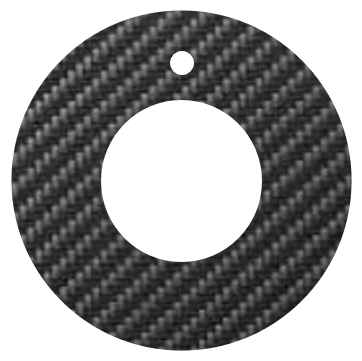

CCR-6529F 2.56 64.85 29 M4 12

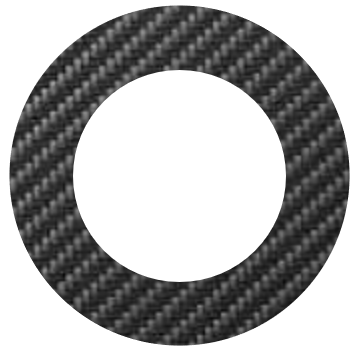

CCR-6538 2.56 64.85 38 9

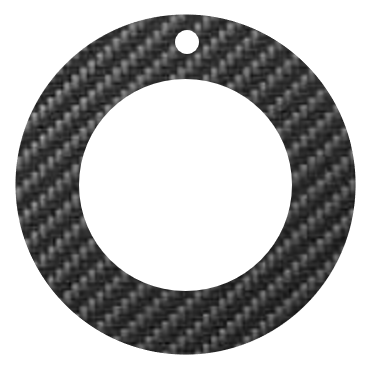

CCR-6538F 2.56 64.85 38 M4 9

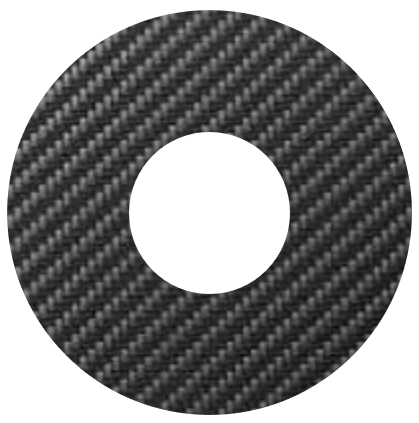

CCR-7629 3.0 76 29 18

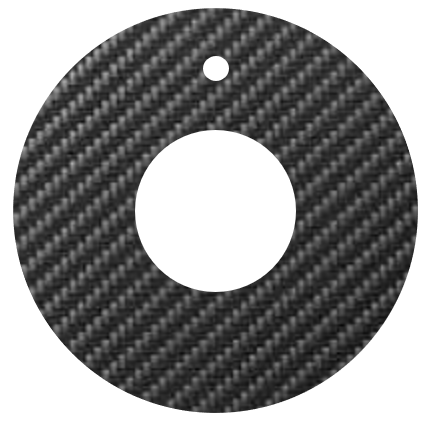

CCR-7629F 3.0 76 29 M4 18

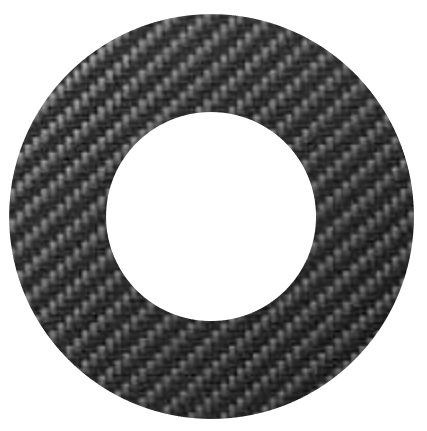

CCR-7638 3.0 76 38 14

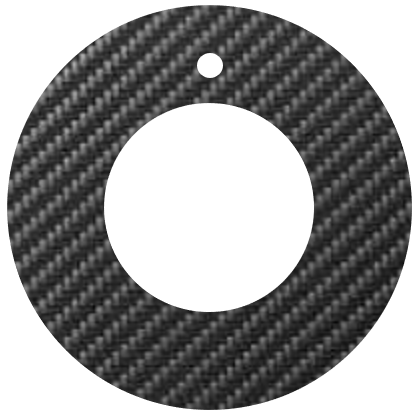

CCR-7638F 3.0 76 38 M4 14

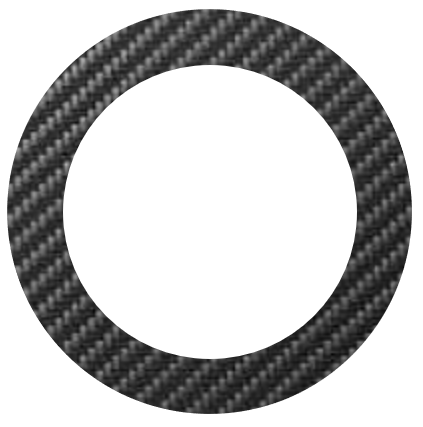

CCR-7654 3.0 76 54 9
CCR-7654 3.0 76 54 * 9

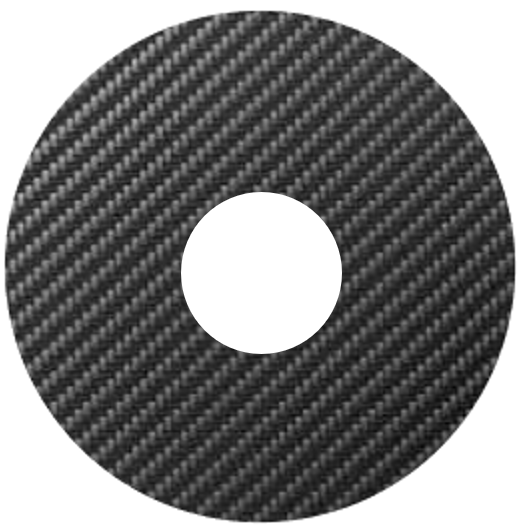

CCR-9829 4.0 99 29 33
CCR-9829F 4.0 99 29 M5 33

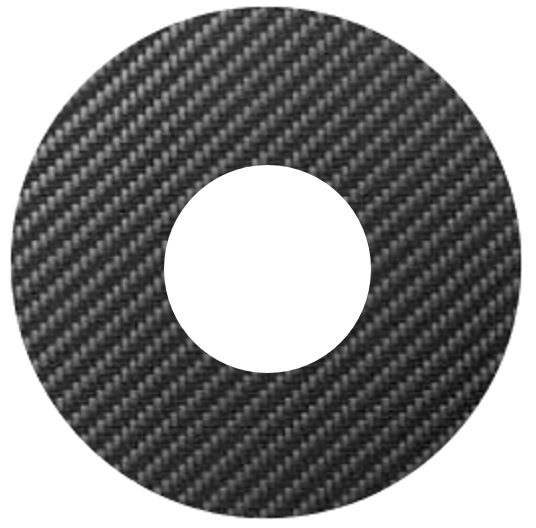

CCR-9838 4.0 99 38 30

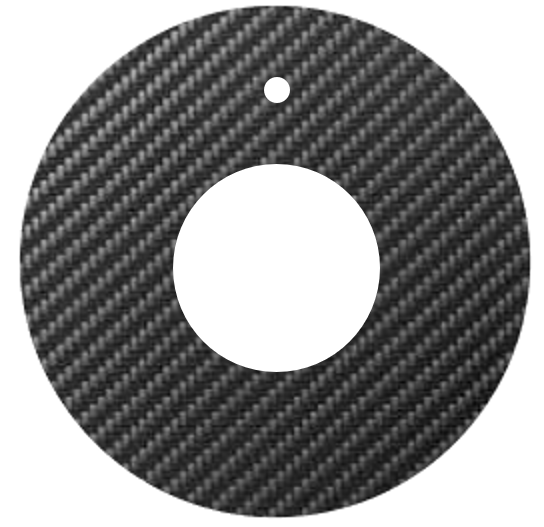

CCR-9838F 4.0 99 38 M6 30

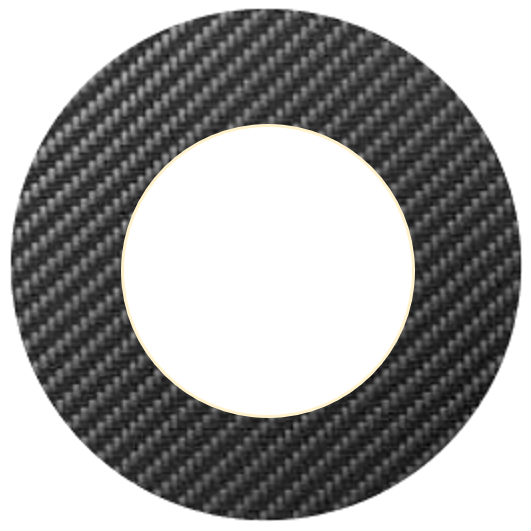

CCR-9854 4.0 99 54 24
CCR-9854F 4.0 99 54 M6 24



*  Where there is insufficient space for a hole the ring is 'notched'

We like them so much ALL of our 4" and above rocket kits will have these as standard.

Stocks are limited so get yours now.
