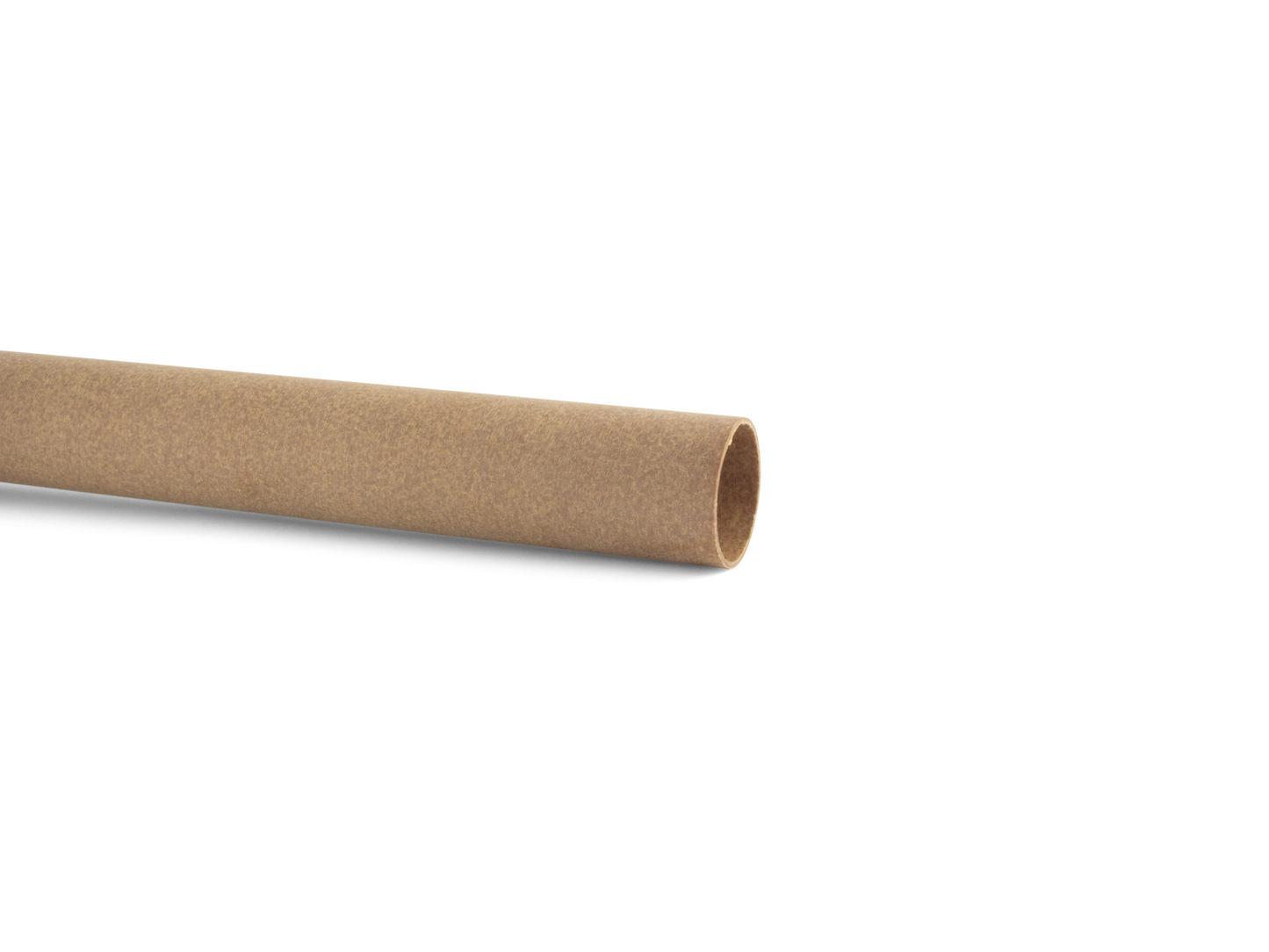

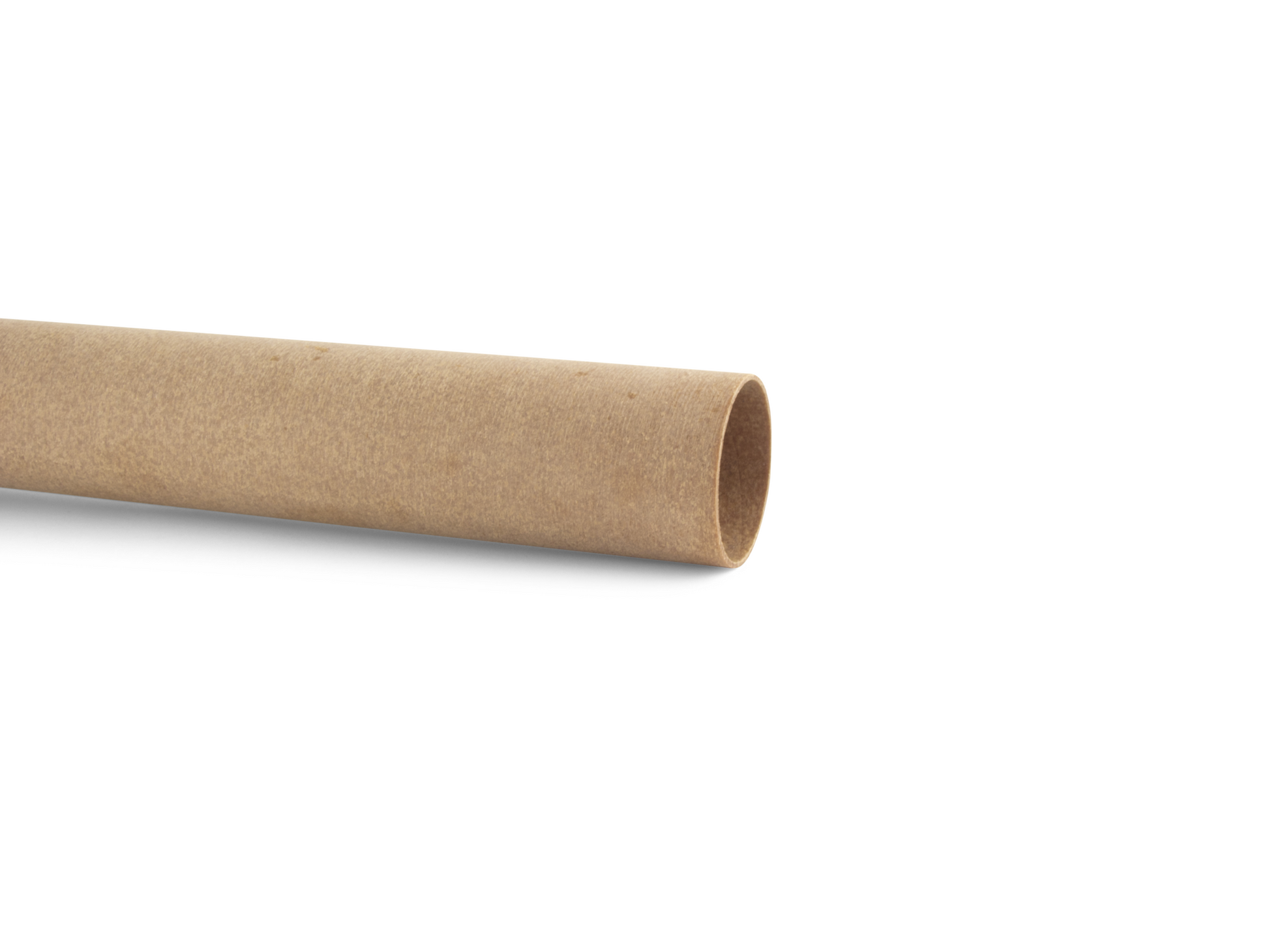

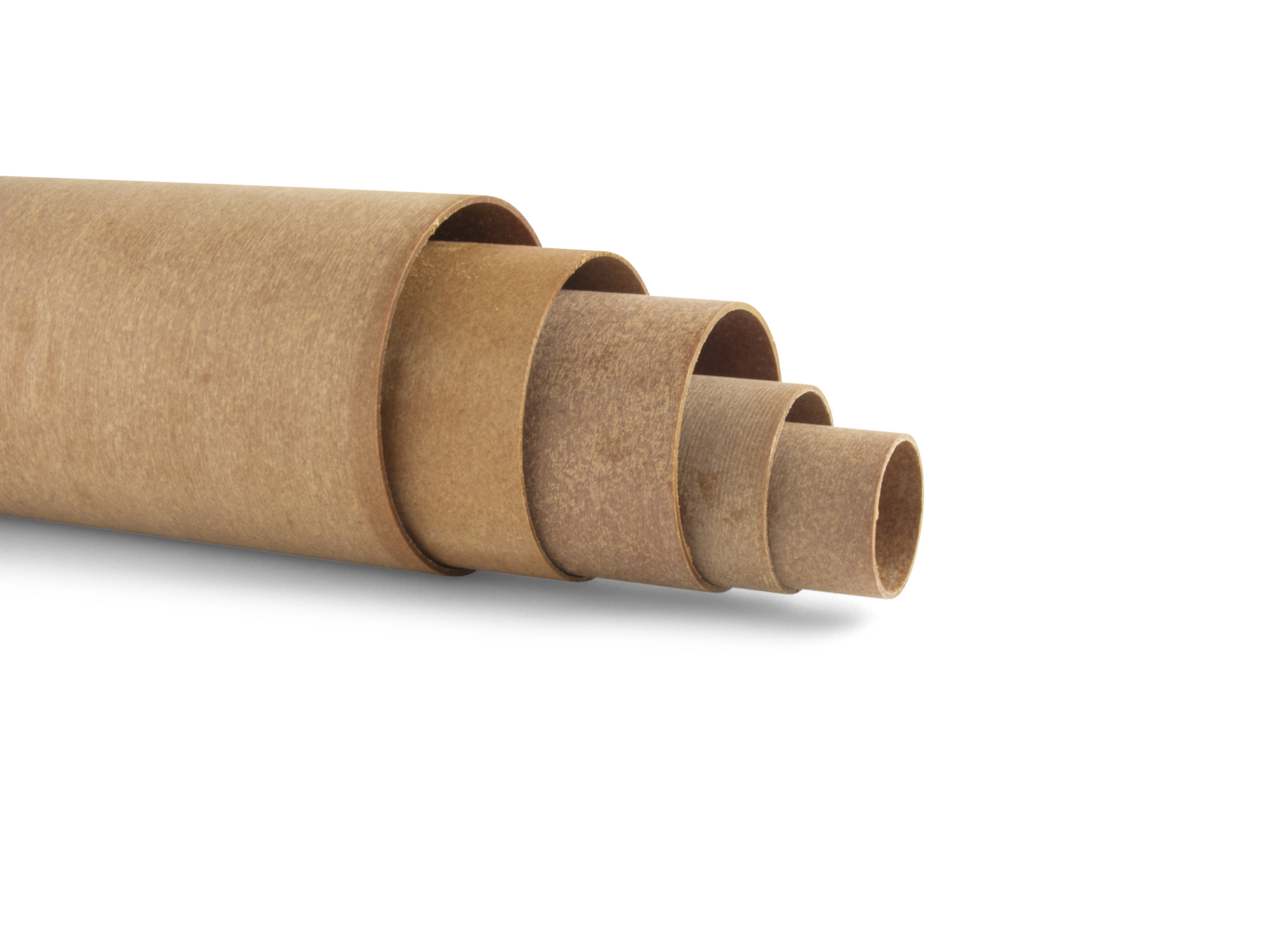

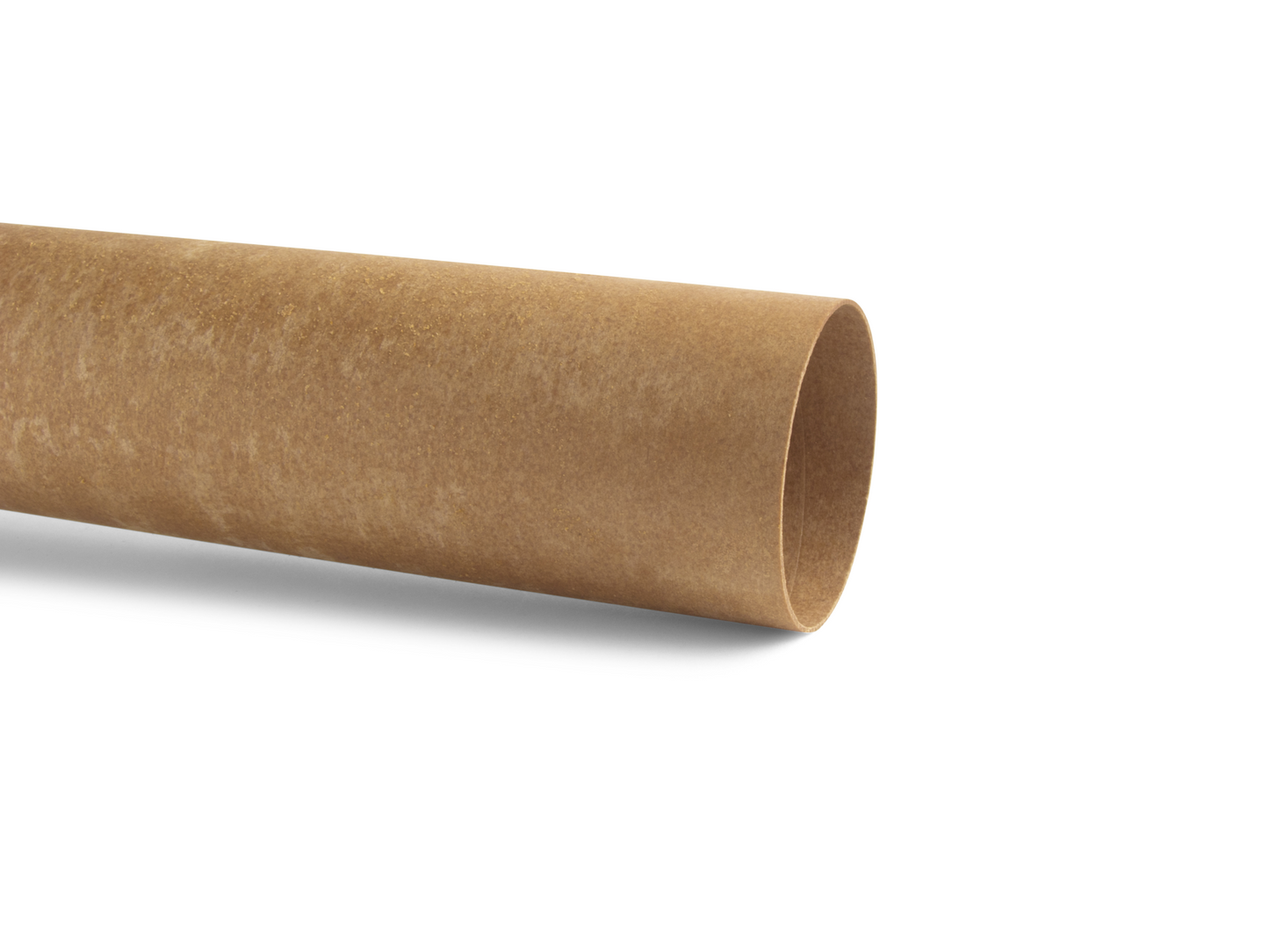

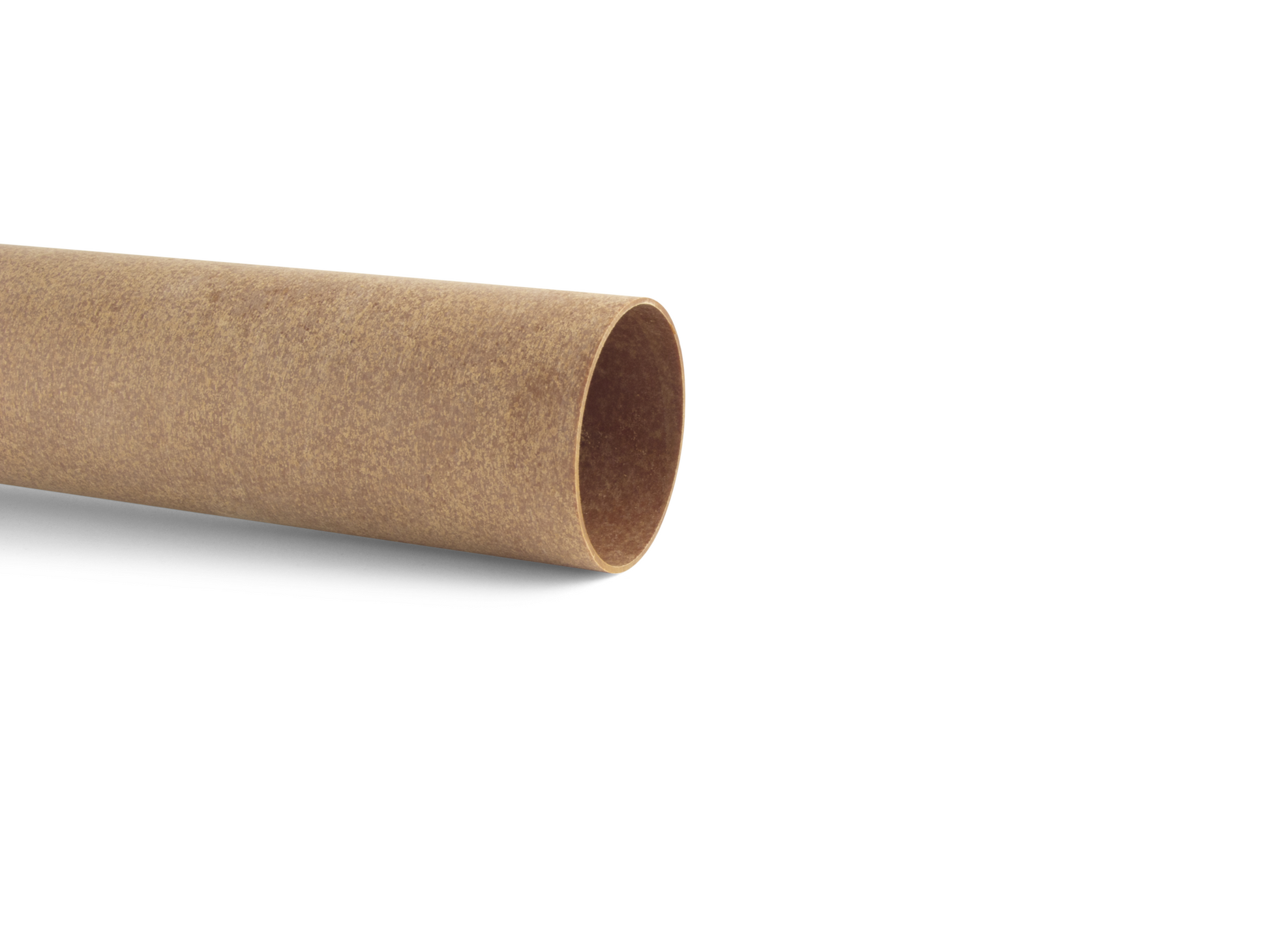

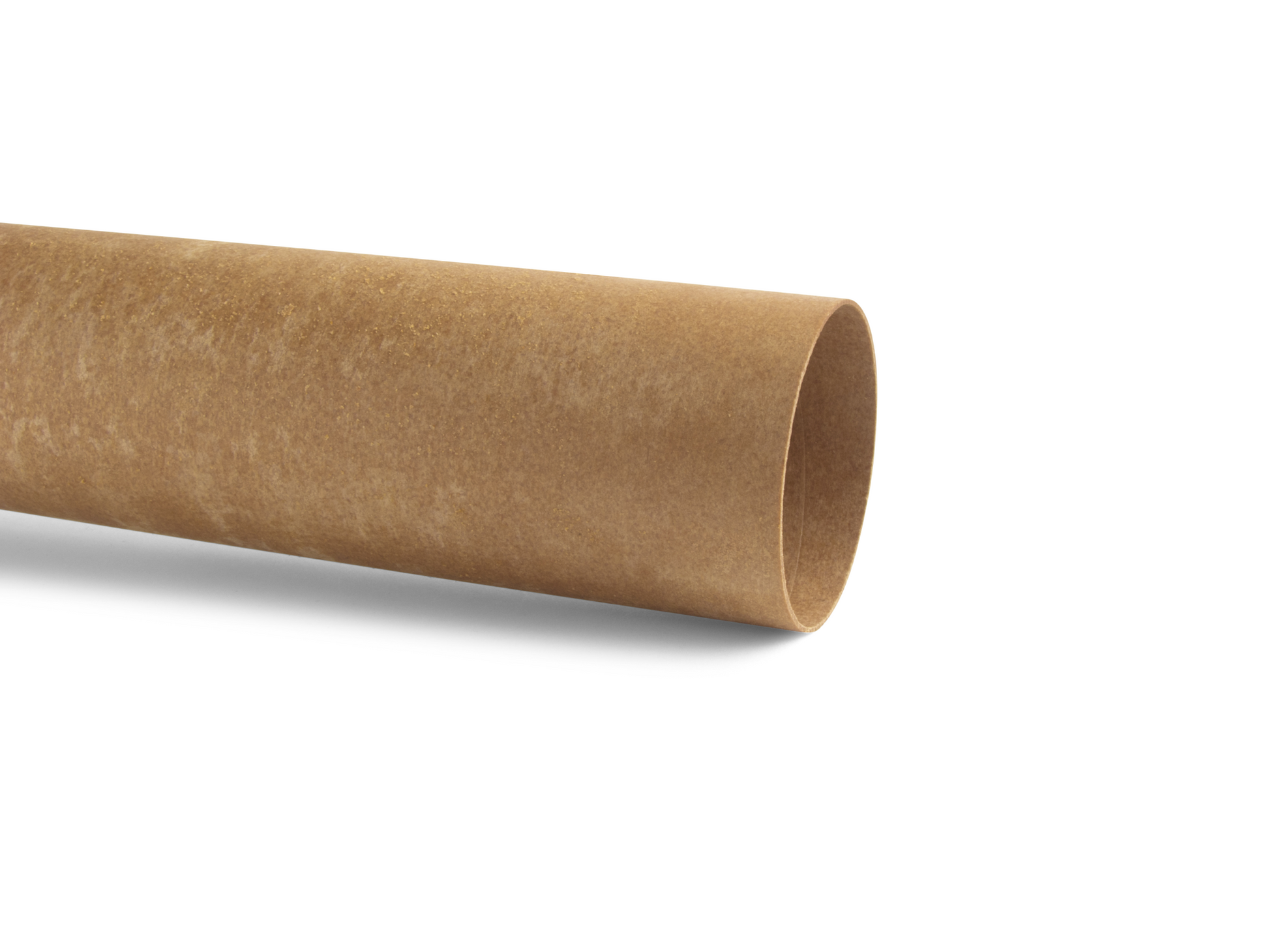

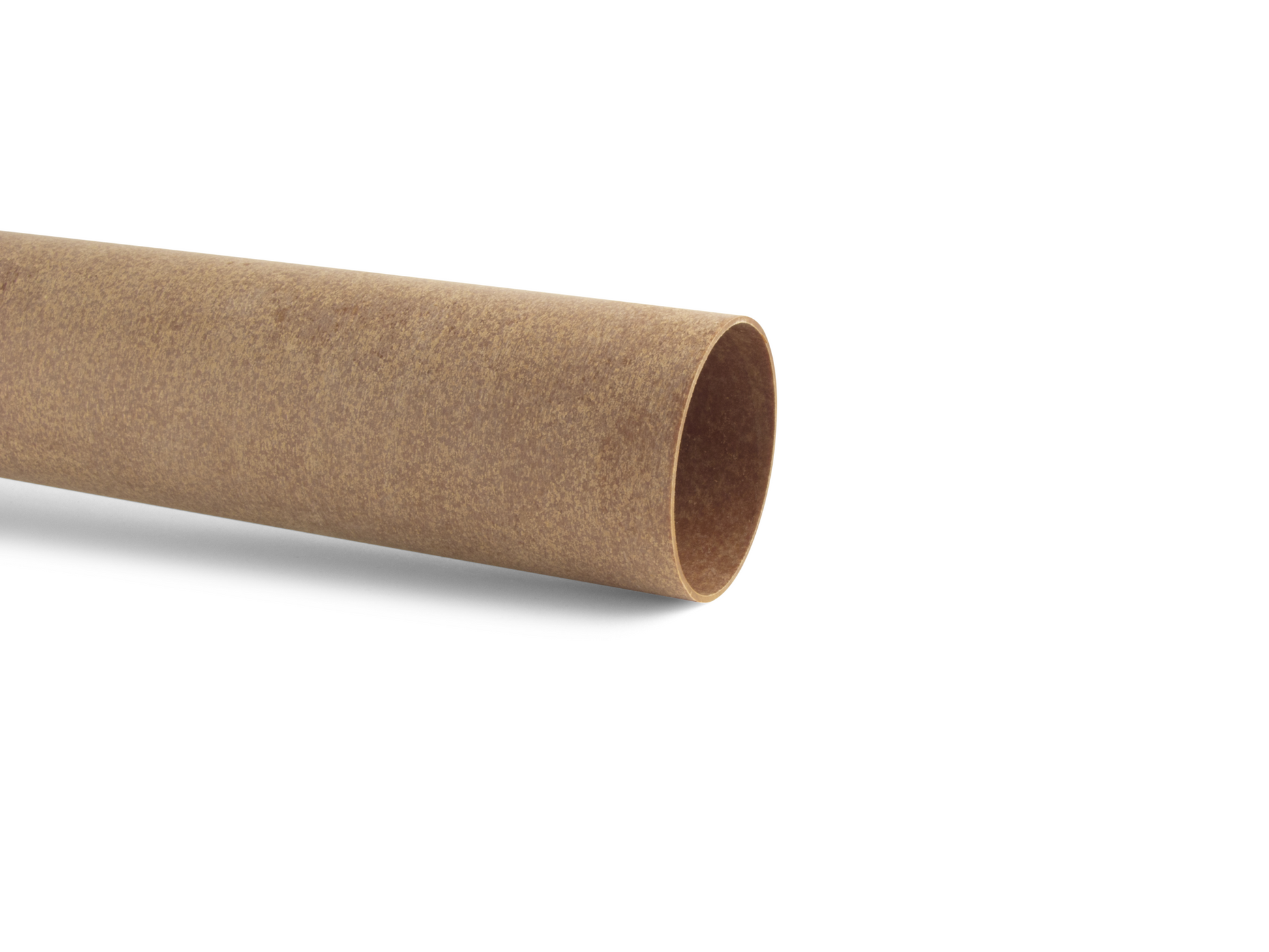

Seamless Phenolic Airframe Tubes
Our seamless airframe tubes are made specifically for Black Cat Rocketry here in the UK. Manufactured to match PML sizes to offer interchange between PML and GiantLeap phenolic tubes. NO spirals to fill just give the outside a smooth sanding and you are ready to paint.
Sizes are listed according to Inner Diameter (ID).
| Part# | Inner Dia.(mm) | Wall (mm) | Outer Dia. (mm) | Len (mm) | Weight (gm) |
|---|---|---|---|---|---|
| PT-1.1 | 29.30 | 1.25 | 31.80 | 1000 | 163 |
| PT-1.5 | 38.61 | 1.25 | 41.11 | 1000 | 197 |
| PT-2.1 | 54.75 | 1.25 | 57.25 | 1000 | 272 |
| PT-2.1L | 54.75 | 1.25 | 57.25 | 1225 | 344 |
| PT-2.5 | 65.00 | 1.25 | 67.50 | 1225 | 322 |
| PT-2.5S | 65.00 | 1.25 | 67.50 | 450 | 150 |
| PT-3.0 | 76.20 | 1.50 | 79.20 | 1000 | 450 |
| PT-3.0L | 76.20 | 1.50 | 79.20 | 1225 | 500 |
| PT-3.9 | 99.30 | 1.50 | 102.20 | 1000 | 725 |
| PT-5.5 | 136.65 | 2.00 | 140.71 | 1000 | 1103 |
| PT-6.0 | 152.40 | 3.00 | 158.4 | 1000 | 1485 |
