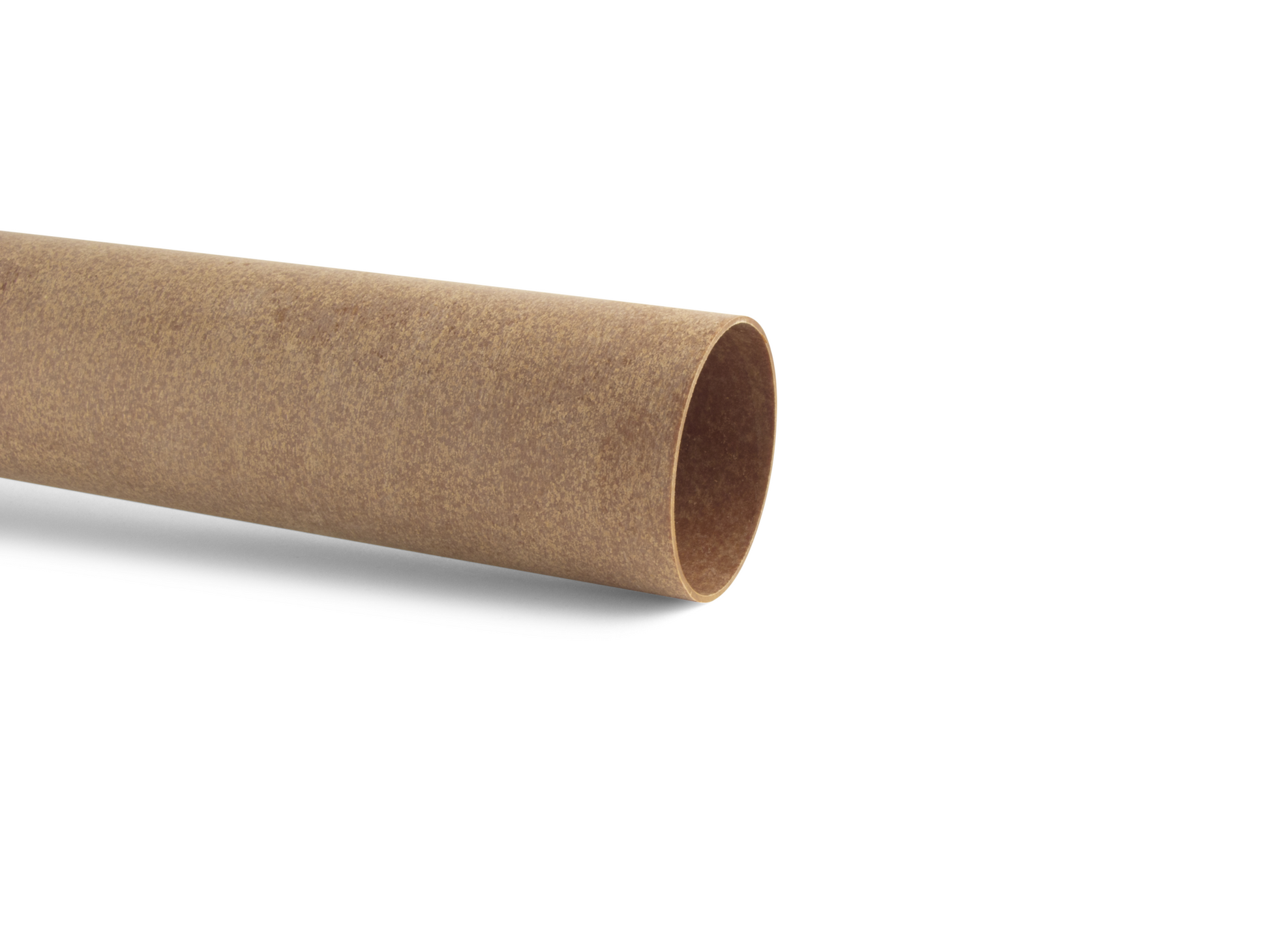

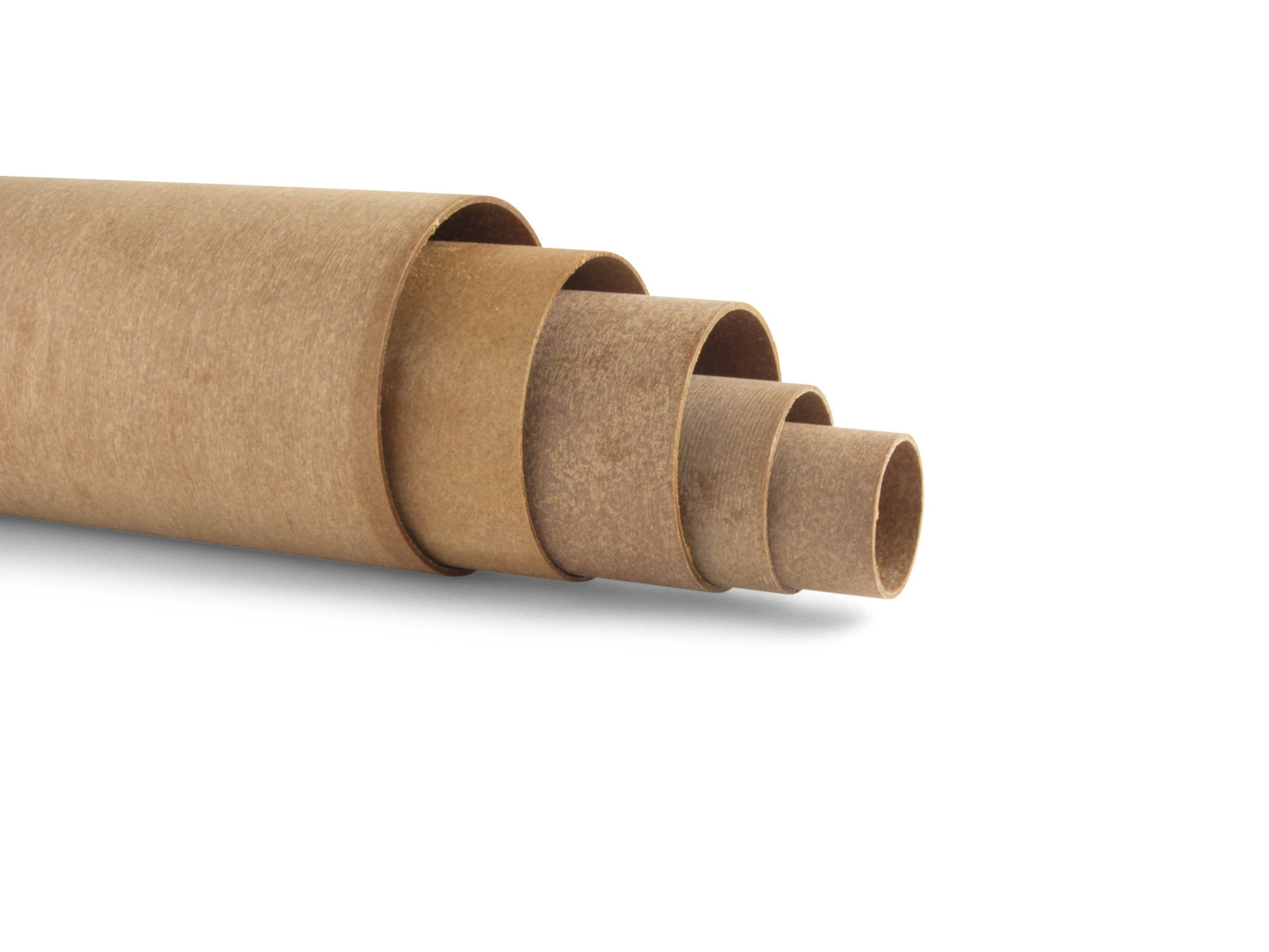

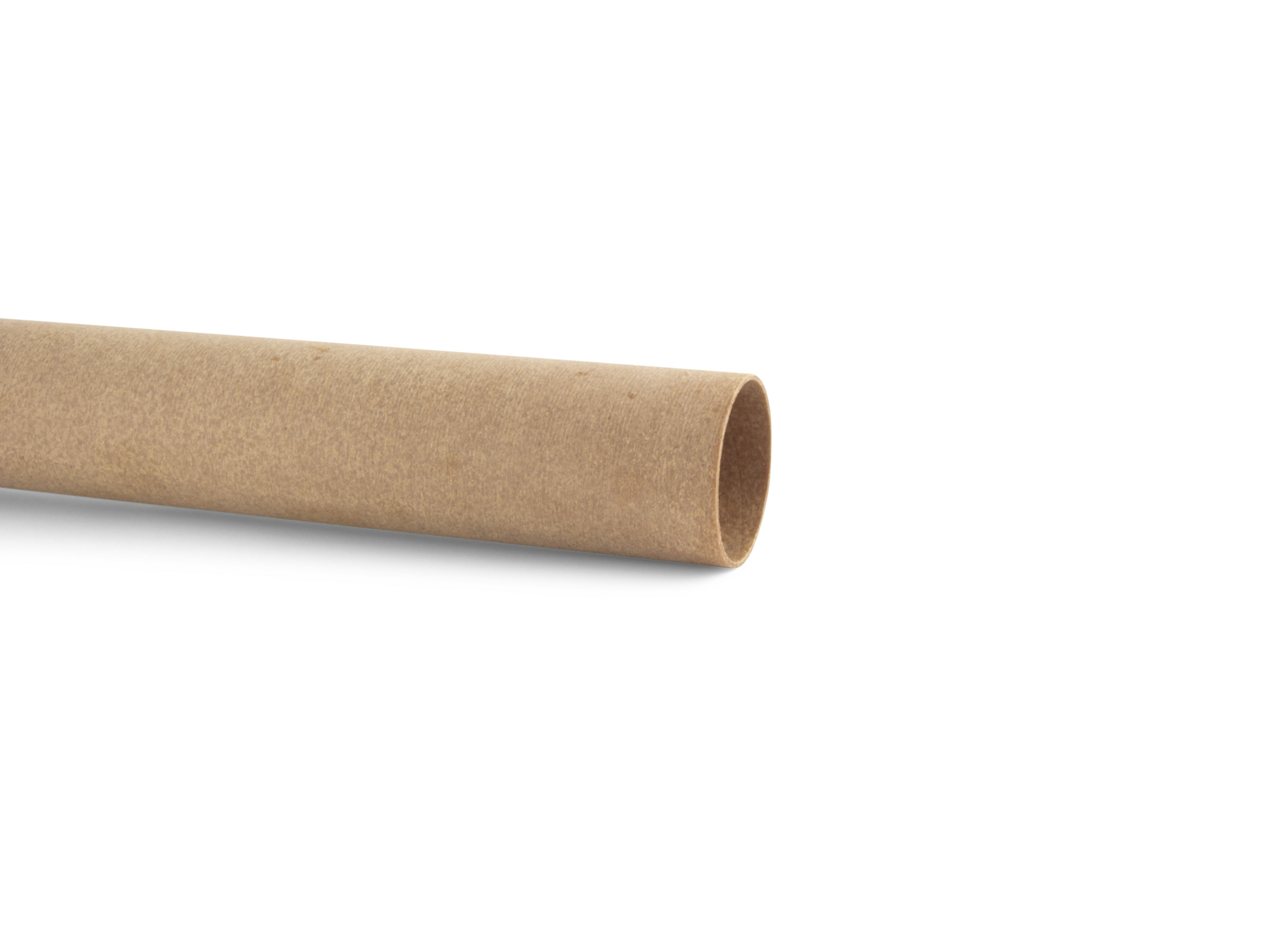

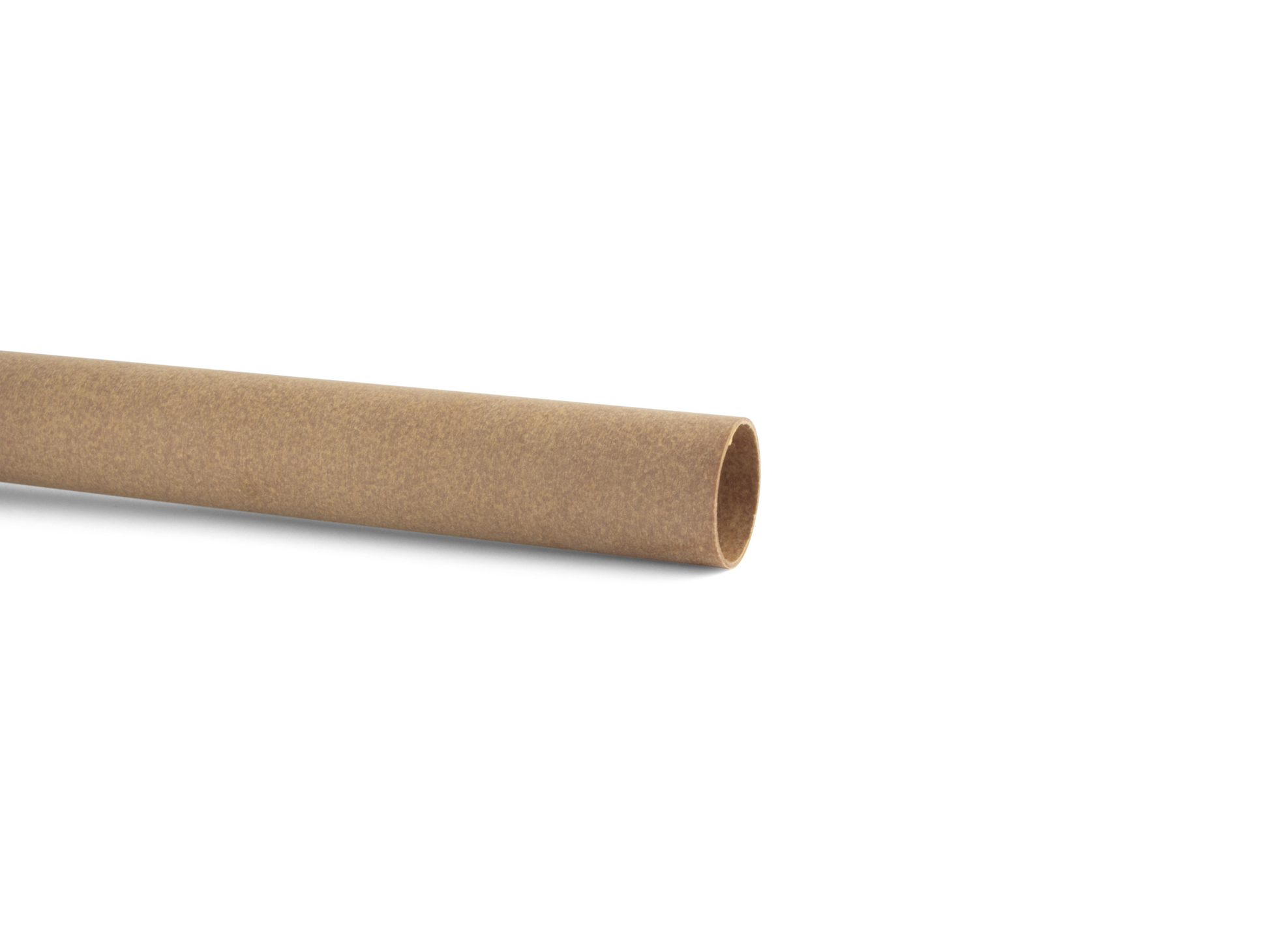

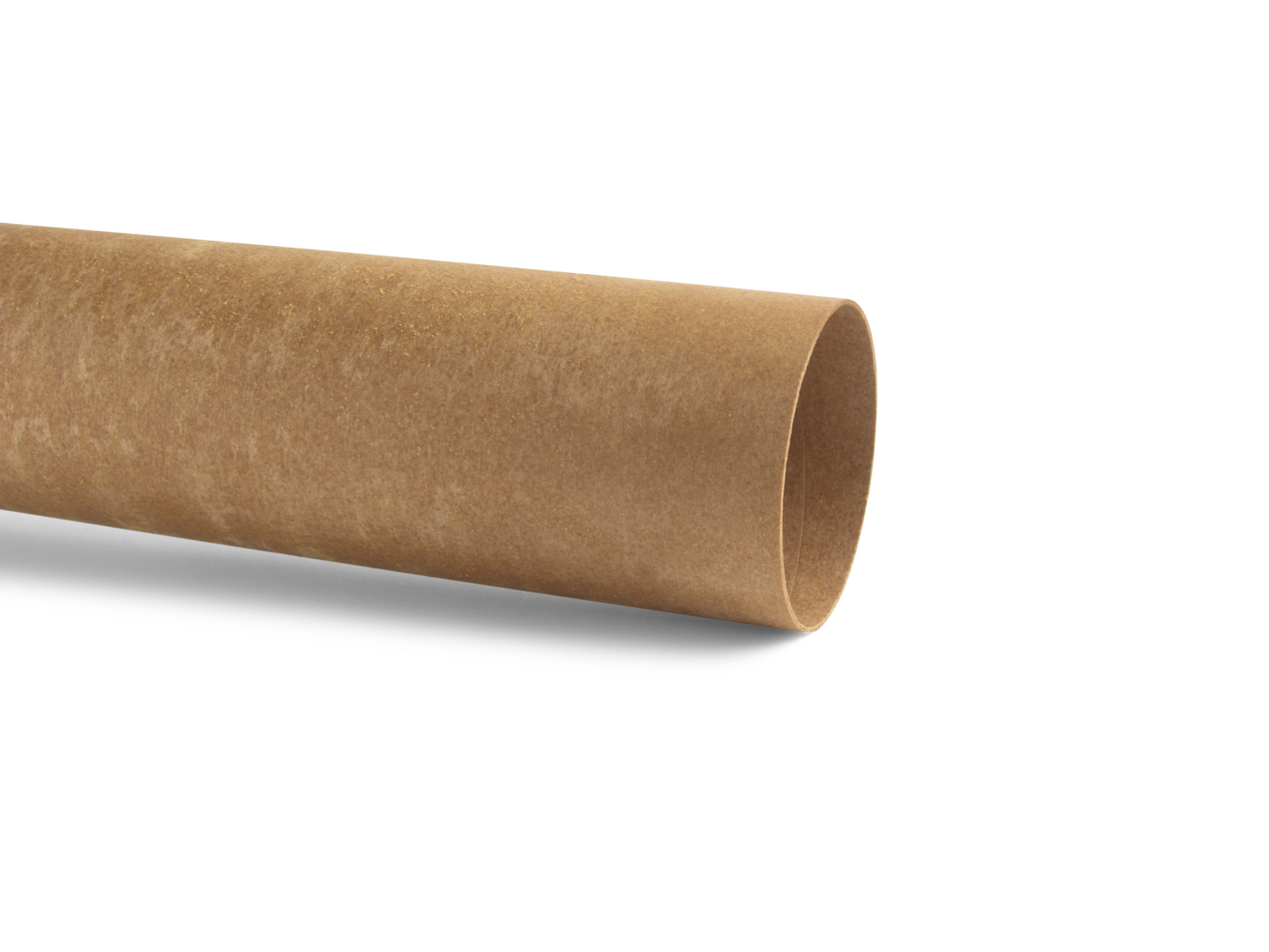

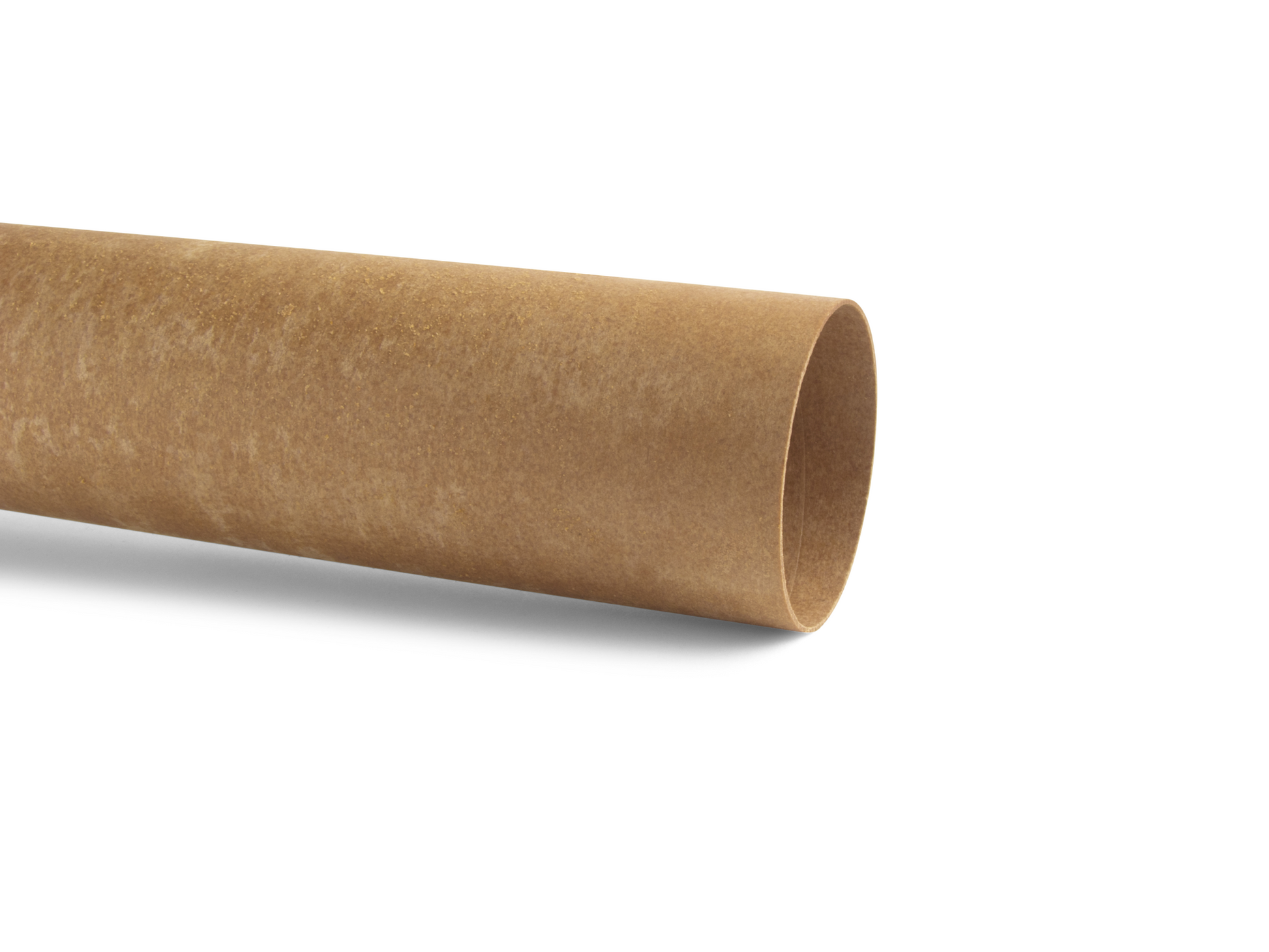

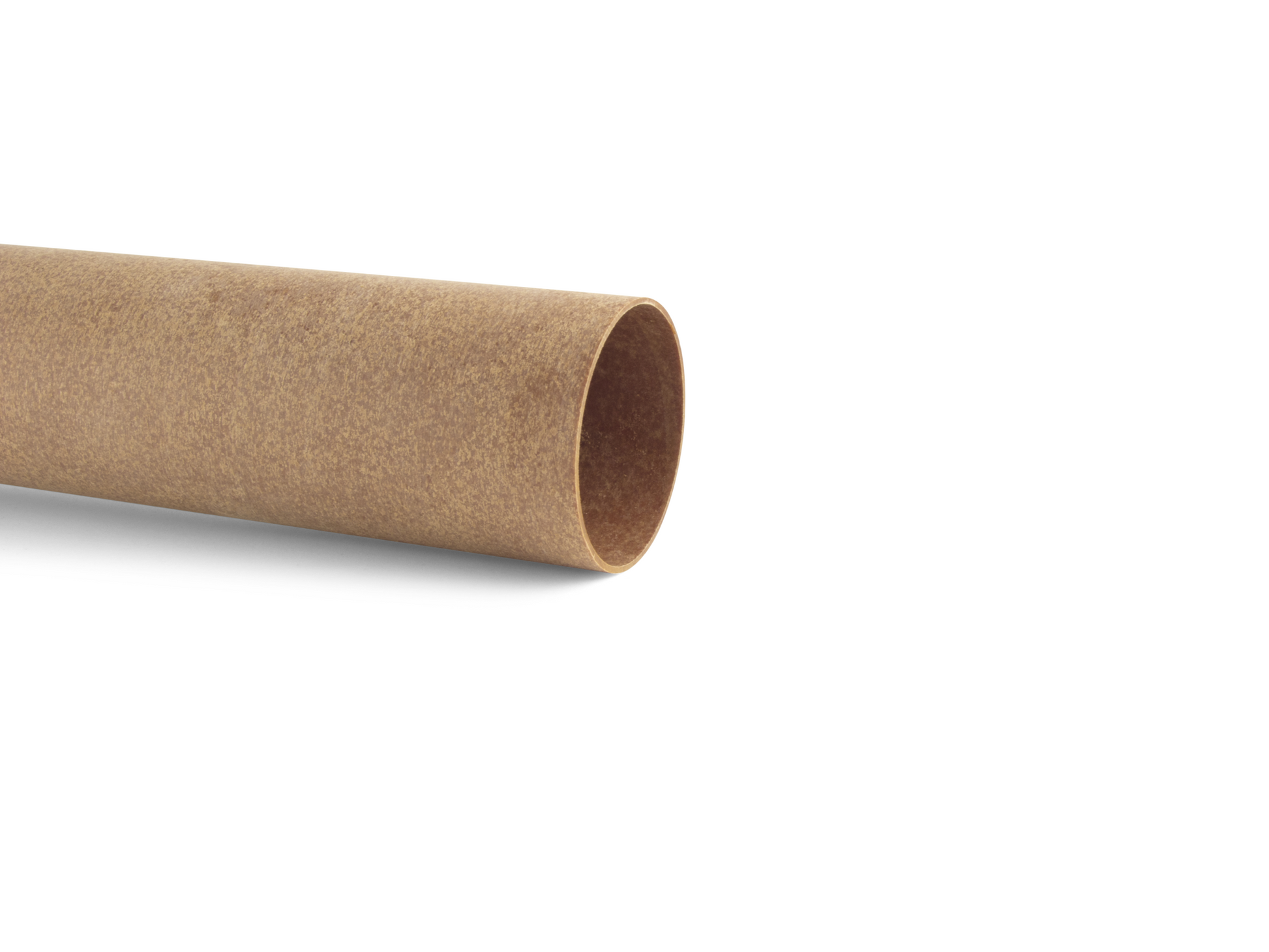

Seamless Phenolic Coupler Tubes
Compatible with PML and GiantLeap Rocketry tubes our coupler tubes are very strong and totally seamless.
Sizes are listed according to Outer Diameter (OD).
Made specifically for Black Cat Rocketry here in the UK.
| Part# | Inner Dia.(mm) | Wall (mm) | Outer Dia. (mm) | Len (mm) | Weight (gm) |
|---|---|---|---|---|---|
| PCT-1.1 | 26.18 | 1.41 | 29.00 | 1225 | 164 |
| PCT-1.5 | 35.70 | 1.3 | 38.3 | 1225 | 204 |
| PCT-2.1 | 51.18 | 1.61 | 54.4 | 1225 | 355 |
| PCT-2.5 | 62.20 | 1.25 | 64.7 | 1225 | 327 |
| PCT-3.0 | 72.90 | 1.50 | 75.90 | 1225 | 486 |
| PCT-3.9 | 96.0 | 1.5 | 99.0 | 305 | 172 |
| PCT-5.5 | 130.17 | 3.0 | 136.17 | 355 | 535 |
